Shedding Light on Perovskite Hydrides Using a New Deposition Technique

  • Research

Researchers develop a methodology to grow single-crystal perovskite hydrides, enabling accurate hydride conductivity measurements.


Perovskite hydrides are promising materials for various emerging energy technologies, but measuring their intrinsic hydride-ion conductivity is difficult. In a recent study, researchers from Japan address this issue using a novel laser deposition technique in an H-radical atmosphere. Using this approach, they grew thin-film single crystals of two different perovskite hydrides and characterized their hydride-ion conductivity. These efforts will bolster research on hydrogen-related materials.

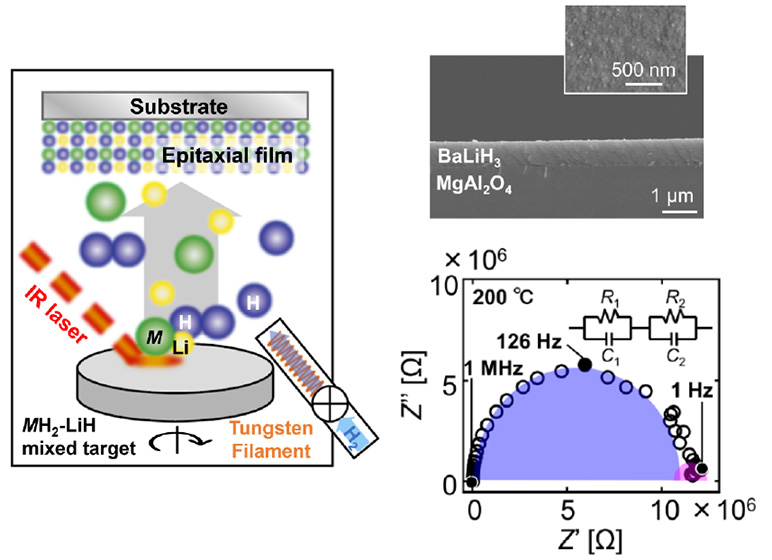

Title: Epitaxial thin film growth through an innovative deposition technique
Caption: The novel setup developed for this study enables the growth of single crystals of ternary pervoskite hydrides, which is notoriously challenging. In turn, these high-quality crystals in the form of thin films can be used to measure the intrinsic hydride-ion conductivity of these perovskites, as shown in the bottom-right figure.
Credit: Erika Fukushi from Shibaura Institute of Technology
License Type:  Original Content
Usage restrictions:  Reprinted with permission from Epitaxial Thin Film Growth of Perovskite Hydrides MLiH3 (M : Sr, Ba) for the Study of Intrinsic Hydride-Ion Conduction by Erika Fukushi, Fumiya Mori, Kota Munefusa, Takayuki Harada, and Hiroyuki Oguchi, ACS Applied Energy Materials 2024 7 (7), 2810-2815, DOI: 10.1021/acsaem.3c03188. Copyright © 2024 American Chemical Society.Content

Perovskites are currently a hot topic in materials science due to their remarkable properties and potential applications, including sustainable energy technologies, catalysis, and optoelectronics, to name a few. Perovskites hydrides, whose molecular structure contains hydrogen anions (H), attract special attention because of their hydrogen-derived properties. Many experts believe these compounds could be key in the study and development of hydrogen storage technologies, such as fuel cells and next-generation batteries, as well as energy-saving superconducting cables.

Even though perovskite hydrides represent a unique platform for applied materials science, characterizing their physical properties has proven challenging. In particular, measuring the H conductivity of these crystalline materials is not straightforward. In most studies, researchers use powdered samples in their characterization analyses, meaning that H conduction is affected by the irregularities (‘grain boundaries’) in the crystals. To get true values for the intrinsic H conductivity of a given perovskite, one needs to produce a uniform, continuous single crystal with as few imperfections as possible. For complex ternary perovskite hydrides, achieving this is difficult, and very few research groups have attempted it.

In a recent study made available online on 25 March 2024 and published in ACS Applied Energy Materials on 8 April 2024, a team of researchers including Doctoral course student Erika Fukushi from the Department of Regional Environment Systems of the Graduate School of Engineering and Science at Shibaura Institute of Technology (SIT), Japan, decided to stand up to the challenge. Using an innovative approach to produce high-quality single crystals, the team performed some of the first intrinsic conduction measurements on ternary perovskite hydrides. This work is co-authored by Fumiya Mori, Kota Munefusa, and Hiroyuki Oguchi from SIT and Takayuki Harada from the National Institute for Materials Science.

To produce the perovskite single crystals, the researchers developed and pioneered a powerful method called ‘H-radical reactive infrared laser deposition.’ This approach involves shining an infrared laser onto a rotating disk-shaped pellet containing the metal atoms of the desired perovskite. In their study, the researchers wanted to produce MLiH3 (where M is either Sr or Ba), and thus the pellet was made of a crudely compressed mix of MH2 and LiH powders. As this pellet was heated up by the laser, the metals were released from it into a surrounding H-radical-rich atmosphere, obtained by injecting hydrogen into the reaction chamber through a heated tungsten filament.

Nearby the pellet was a carefully selected substrate, onto which the hydrogen and metals spontaneously combined to form the desired perovskite. As atoms began to pile up onto the substrate, they spontaneously arranged and aligned themselves in a consistent manner with the crystal layers below them. This led to the epitaxial growth of a nanofilm on the substrate. “Our approach is unique in its ability to perform deposition in a radical hydrogen atmosphere, significantly promoting the reaction between the metal and hydrogen,” explains Fukushi. “This results in the synthesis of single-phase hydride thin films by fully hydrogenating the metal atoms that naturally tend to persist in the film.”

The researchers performed multiple laser depositions under a variety of conditions and thoroughly characterized the resulting thin films. Using many advanced techniques, including X-ray diffraction, atomic force microscopy, and scanning electron microscopy, they determined the elemental distribution and crystallinity of each of the films. In this way, they determined the optimum conditions in their experimental setup for growing well-ordered, single-crystal MLiH3

After confirming the absence of grain boundaries in the films, the team could finally carry out H conductivity measurements. Worth noting, these were the first measurements of the intrinsic H conductivity of these crystals, a crucial information for selecting materials in many hydrogen-related applications. “Novel secondary batteries and fuel cells may be developed using hydride-ion conduction,” comments Fukushi. “Such     technologies could encourage the spread of electric vehicles and renewable energy, ultimately contributing to the construction of an energy-saving sustainable society.”

With any luck, this newfound strategy for growing high-quality perovskite hydride crystals will open up new frontiers in hydrogen materials science and pave the way to sustainability.


Title of original paper:

Epitaxial Thin Film Growth of Perovskite Hydrides MLiH3 (M : Sr, Ba) for the Study of Intrinsic Hydride-Ion Conduction


ACS Applied Energy Materials

Article link: 10.1021/acsaem.3c03188


About Erika Fukushi from SIT, Japan

Erika Fukushi is a Doctoral course student from the Department of Regional Environment Systems of the Graduate School of Engineering and Science at Shibaura Institute of Technology (SIT), Japan. They work at the Energy Materials Creation Chemistry Laboratory led by Professor Hiroyuki Oguchi at SIT. Their research interests include inorganic materials science, covering diverse topics including perovskite hydrides and solid electrolytes.

Funding Information

This work was supported by Grant-in-Aid for Challenging Exploratory Research (7K19 K22225) from Japan Society for the Promotion of Science, the 56th Kowa Lithium Award from L-GRANT Research, the S-SPIRE project at Shibaura Institute of Technology (23017), the NIMS Collaboration Center Promotion Program (2022-87) (2023-024), and JST PRESTO (JPMJPR20AD) from Japan Science and Technology Agency.
